Portable HFC Digital Fundus Camera Ophthalmic Equipment

Brand Name : BIO

Model Number : HFC-02

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : Credit card, Paypal, T/T

Supply Ability : 100 units / month

Delivery Time : 7 working - days since getting full payment

Packaging Details : 1 unit/carton

FOV : 45°

Resolution : 16MP

Target fixation : 8 point internal targets fixation

Minimum pupil diameter : 2.5mm

Flash illumination : White light&infrared

Focus : Manual/Auto

Focus range : -20D to + 20D

Screen resolution : 3.97 inch Multi-touch Screen, 800*480

Connect function : USB2.0/WIFI/Bluetooth/4G/wireless printing etc

Image sharing : DICOM3.0,Cloud,Wechat,facebook,QQ,Microblog etc

Contact Now

Portable HFC Digital Fundus Camera Ophthalmic Equipment With 3.97 Inch Touch Screen Focus Range -20D to + 20D

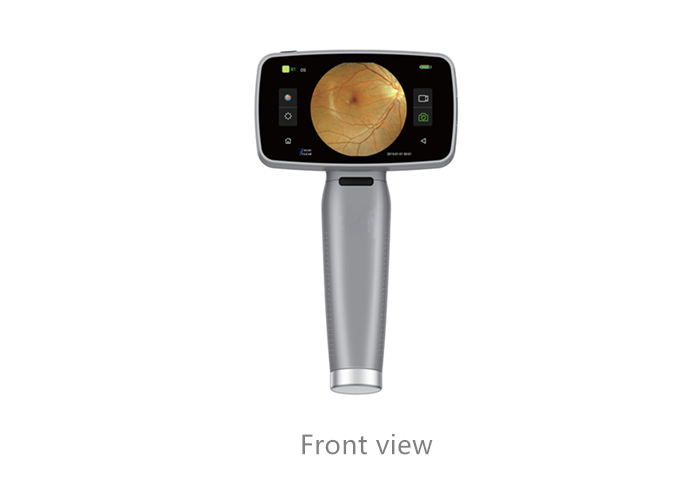

The handheld Fundus Camera is a portable digital image device for the eye and peripheral area

of the eye,fundus imaging,diagnosis,and especially the fundus desease screen.

It is mainly composed of main unit, base,rubber patch,Micro USB cable,5V1A power adapter,18650 battery.

Advantage

HD touch screen display
Perfect fixation mode
Fast HD fundus imaging
Compact body design
Android smart system design
Simple and convenient operation
Support ID automatic recognition and wireless printing

Feature

1	image real-time display
2	Non-mydriatic and high definition imaging.
3	3.97 inch Multi-touch Screen
4	USB2.0/WIFI/Bluetooth/4G/wireless printing etc
5	Low weight 560g,movable and portable
6	Support ID automatic recognition and wireless printing

Specification

Model	HFC-02
Product category	Non-mydriatic fundus camera
Product Screen	3.97 inch Multi-touch Screen, 800*480
Field of view	45°
Resolution	16MP
Target fixation	8 point internal targets fixation
Minimum pupil diameter	2.5mm
Flash illumination	White light&infrared
Focus	Manual/Auto
Focus range	-20D to + 20D
Focus indication	Yes
Image format	JEPG
Video format	3GP
Image color	Color,black and white
Memory	Internal 16 GB
Connect function	USB2.0/WIFI/Bluetooth/4G/wireless printing etc
Image sharing	DICOM3.0,Cloud,Wechat,facebook,QQ,Microblog etc
Network	China Mobile,China Unicom,China Telecom
Battery	3.7V rechargeable lithium battery
Adapter	50/60Hz,100~240V AC input;5V 1A DC output
Charge current	Maximu 5V 1.2A
Product size	218118216mm
Weight	560g

Scope of application

Ophthalmology clinic: screening of fundus lesions
Optometry Center: Optometry, Screening
Endocrinology: DR screening, routine follow-up
Physical examination department, ward: patients with mobility problems, postoperative examination of wards, children's fundus examination, routine physical examination
Pet medical examination and animal clinical: high-definition picture quality, real-time recording, more accurate judgment
Consultation and free clinic: internal and external consultation and large-scale clinic
Maternal and Child Hospital: Screening for pregnant women and children, more convenient
Grassroots/Remote Medical: Ultra Clear Mobile, Remote Diagnostics and Mobile Medical Choice

Portable HFC Digital Fundus Camera Ophthalmic Equipment

BIO-catalogue for HFC-02.pdf
